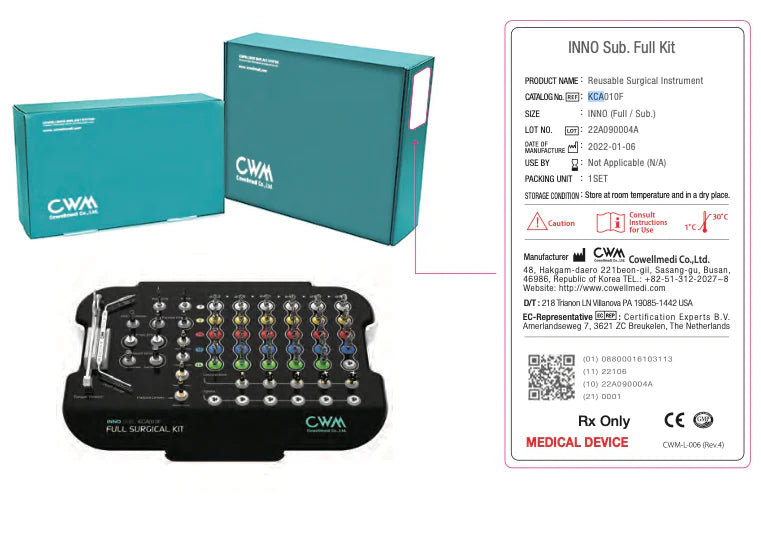

Cowellmedi INNO Submerged Full™ Dental Implant Surgery Kit

INNO SUB. FULL SURGICAL KIT

[KCA010F]

• For INNO Submerged Implant System (Sub.).
• All components are for Sub. / Int. / Ext. except for the Fixture Drivers and the Depth Gauge used for Sub. exclusively.

Drilling Sequence E.g. 12mm Fixture

• Minimal drill frequency with the Point Drill, Initial Drill and Final Drills
  (Ø3.5, Ø4.0 and Ø4.5 Fixtures).

• Length Marking

Actual length of Drill : Fixture + 1mm

• Ø5.0 fixture : a series of the Point Drill, Initial Drill, Ø4.0 Final Drill and Ø5.0 Final Drill.

• Ø6.0 fixture : a series of the Point Drill, Initial Drill, Ø4.0 Final Drill, Ø5.0 Final Drill and Ø6.0 Final Drill.

※ The Countersink and Tap Drill are used in hard bone quality.

※ Sloped edentulous ridge adjacent of tooth

• Crestal cutter of the Initial Drill and Final Drill.

• Longer drills than fixture’s length.

※ Wide extraction socket

• Absence of the cortical bone & spongy bone.

• Narrower diameter than the fixture’s diameter.

※ Torque force control

• The 0.5mm deeper placement increases the initial torque force of fixture.

• The pumping action of drill removes the bone chip in the hole.

• In dense bone, the debriment action decreases the high torque force.

※ In weak bone quality 4 of maxillary tuberosity

• No pumping action.

• 0.5mm deeper placement of fixture.

• Wider fixture than Final Drill.
