INNO Sub. Smart Surgical Kit | Dental Implant | COWELLMEDI

• Instrument kit for simpler, faster and safer implant surgery;
• Extremely reduced deployment time;
• The implant can be placed with just three perforations;
• For INNO Sub implant system (Sub. Ø3.5, 4.0, 4.5 and 5.0);
• Applied to fixings 8~14mm long using drills and stoppers

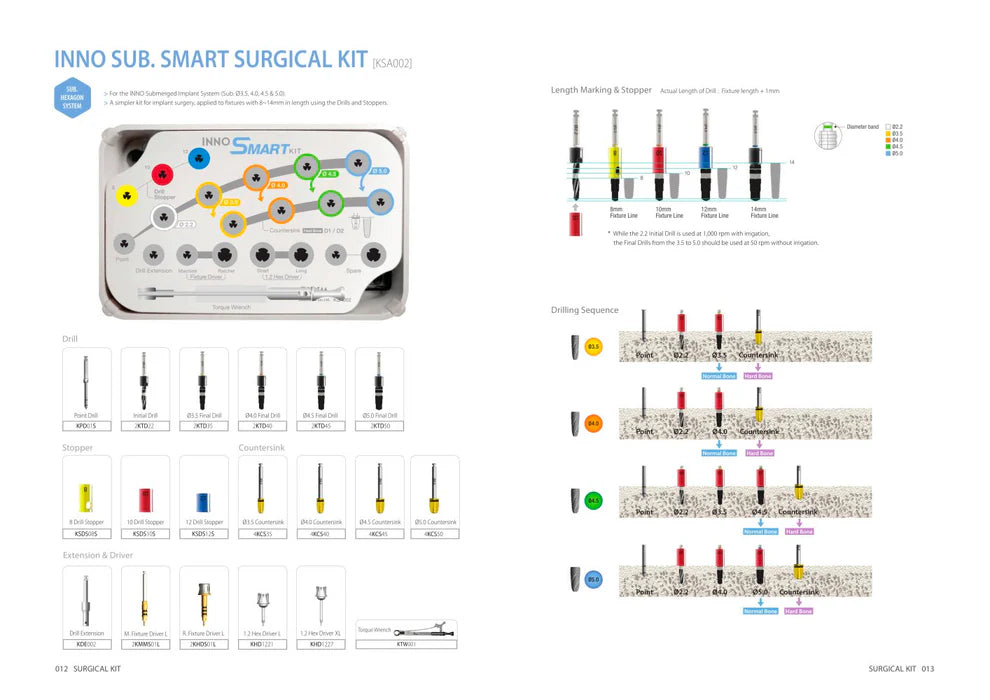

INNO SUB. SMART SURGICAL KIT

[KSA002]

• For the INNO Submerged Implant System (Sub. Ø3.5, 4.0, 4.5 & 5.0).
• A simpler kit for implant surgery, applied to fixtures with 8~14mm in length using the Drills and Stoppers.

Drill

Stopper

Countersink

Extension & Driver

Length Marking & Stopper

Actual Length of Drill : Fixture length + 1mm.

  * While the 2.2 Initial Drill is used at 1,000 rpm with irrigation,
     the Final Drills from the 3.5 to 5.0 should be used at 50 rpm without irrigation.

Drilling Sequence
